Model: GRC

This conveyor is one of the most common conveyors applied in conveying flat-bottomed items like cases, boxes and pallets.Small, soft or irregular items are supposed to put on trays or other flat containers when transferred. Without any motors, it requires manual or other forces to move on items. Customizable in specifications and forms, it intends to:

* Increase the efficiency of material handling work
* Decrease the intensity of labor, and quantity of labor
* Protect items from manual impact damages
* Save overall cost for modern enterprise management

Application:

*Manually transfer general flat-bottomed packed items usually in warehouses.

*Assembly line for slow processings or huge heavy items like refrigerators, washing machines, etc.

Features:

Cost efficient, easy to maintain, durable, large and efficient distribution

Relative Products:

Gravity Skate-Wheel Conveyor

Universal Ball Transfer Unit

More conveyors available, please ASK US if you're looking for something else.

Common Technical Parameters:

Items	Options
Conveyor Form	Lineal,curve, Levered, T-shaped, L-shaped, Z-shaped, C-shaped, O-shaped,etc
Roller Type	Zinc-plated, Chrome-plated, Rubber-coated, SUS201, SUS304, Plastic, etc
Frame Material	Painted carbon steel, Powder coated carbon steel, Stainless steel (SUS 201, SUS304, SUS 316), etc
Conveyor Length	Optional, not limited
Conveyor Width	0ptional, 600mm effective as a factory standard
Conveyor Height	Optional, 700mm as a factory standard
Roller Diameter	Optional, 50mm as a factory standard
Roller Distance	Optional, 100mm central as a factory standard
Side Frame Overheight	Optional, 50mm as a factory standard
Capacity	Optional, 50kg/meter common designed, max. 1500kg/meter

P.S.: For customized conveyors, please fulfil " INFORMATION COLLECTION " file with an inquiry.

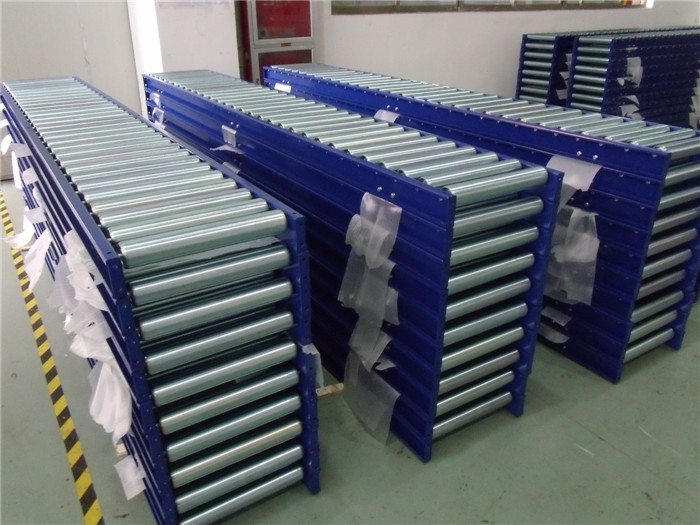

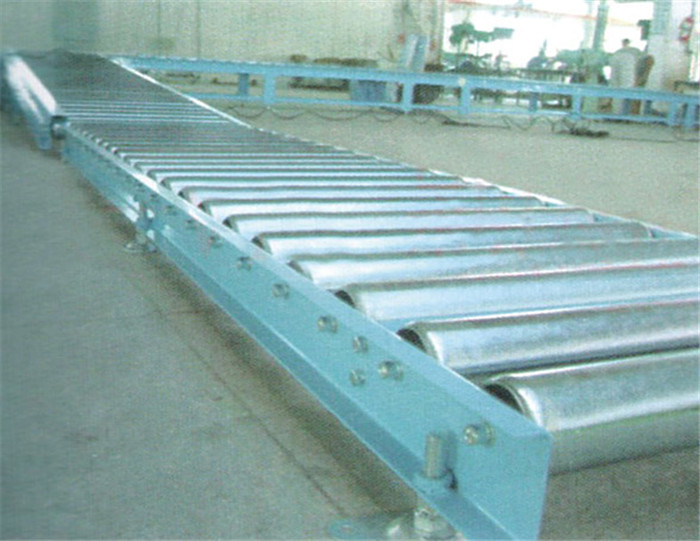

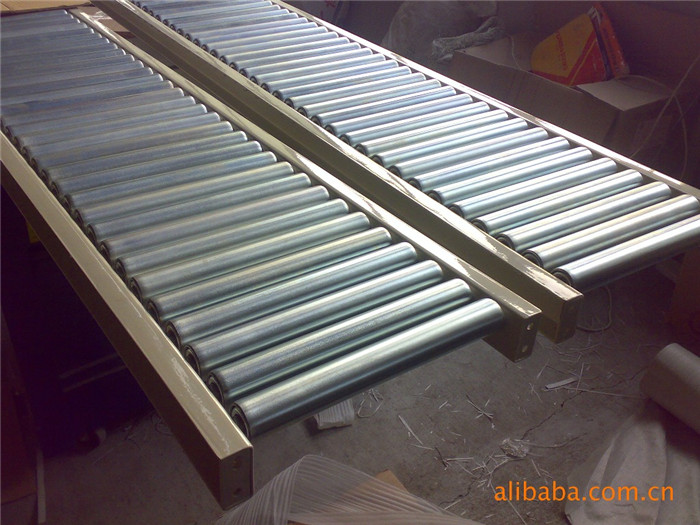

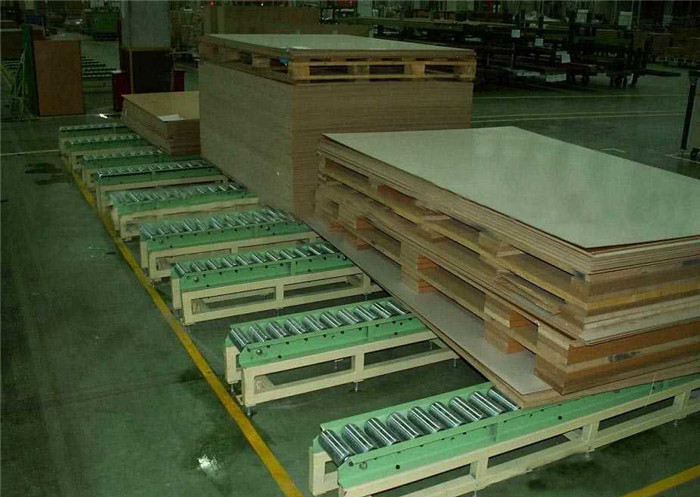

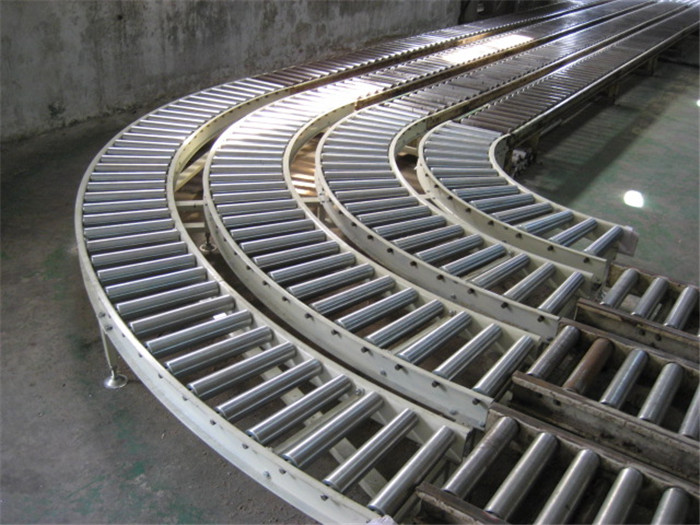

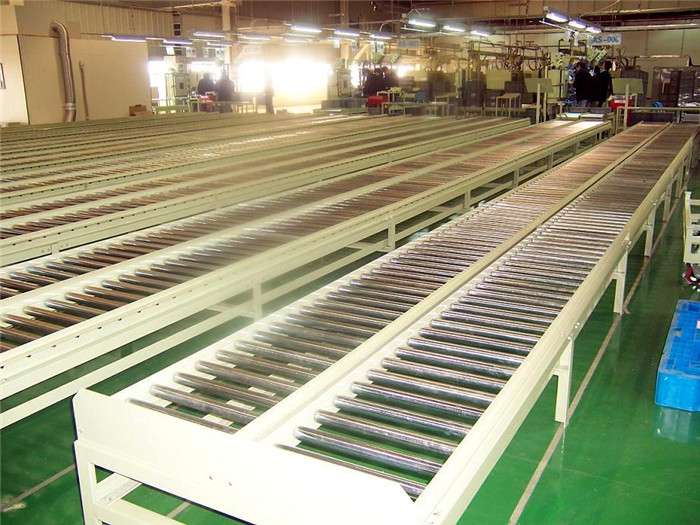

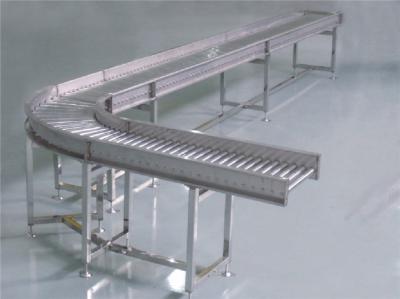

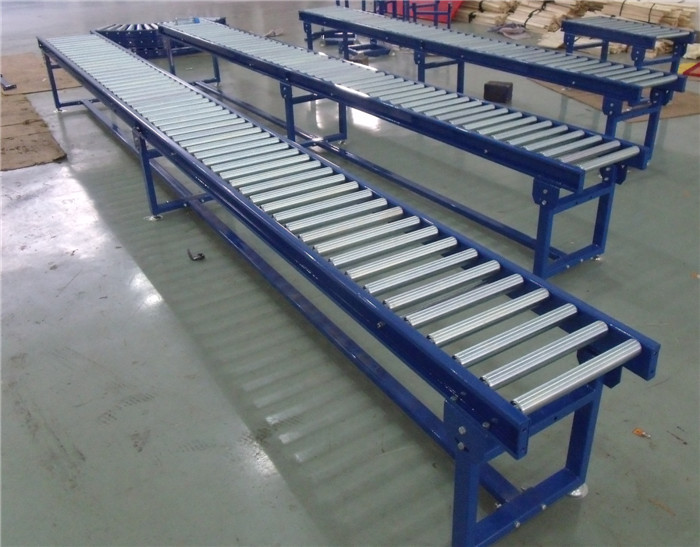

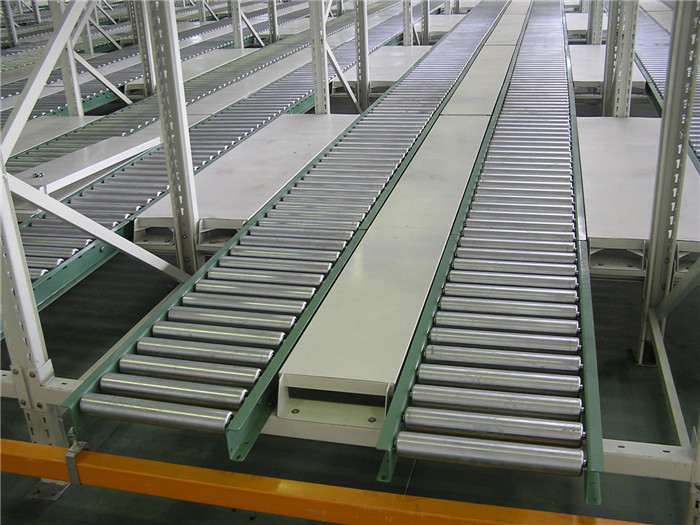

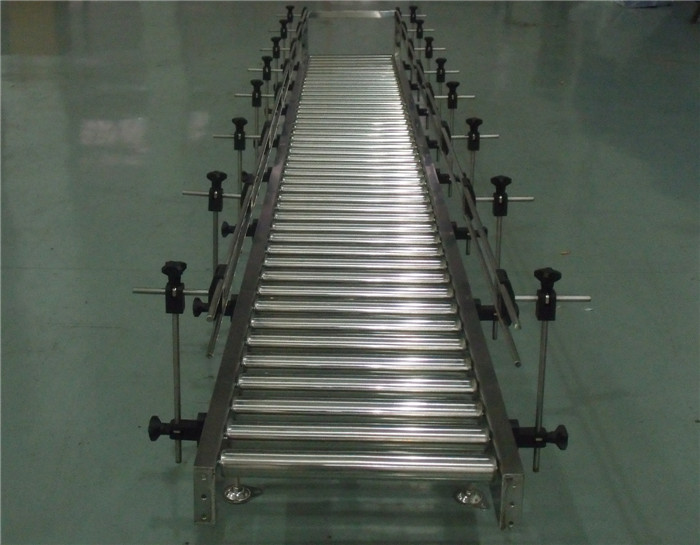

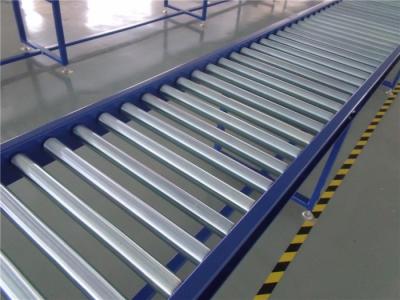

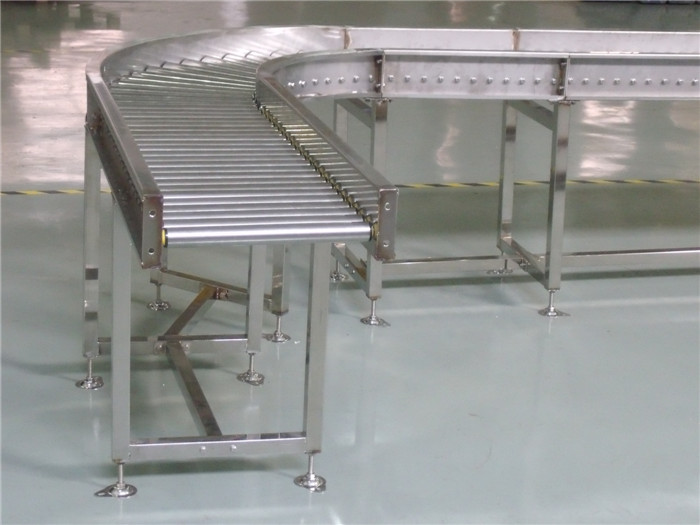

More Pictures for Reference
