Curve Conveyor



Most common forms of curve conveyors are belt curve and roller curve, which are usually applied to conveyor lines with other equipment.Apart from the turning features, they own all the characteristics of general roller or belt conveyors.All curves can be tailor made as per specific situations.

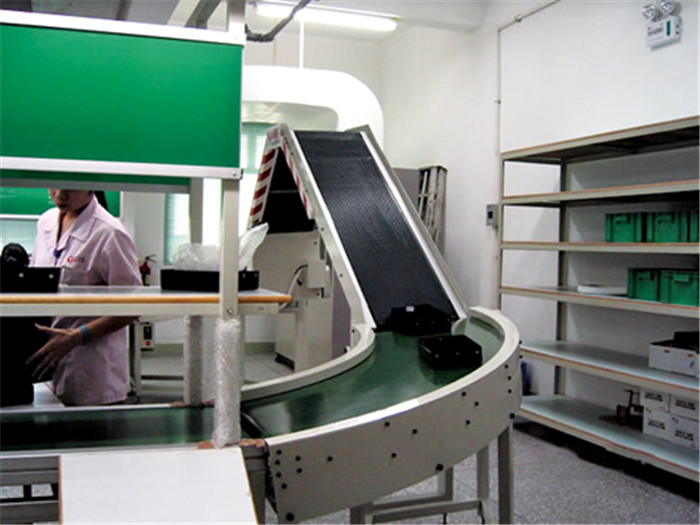

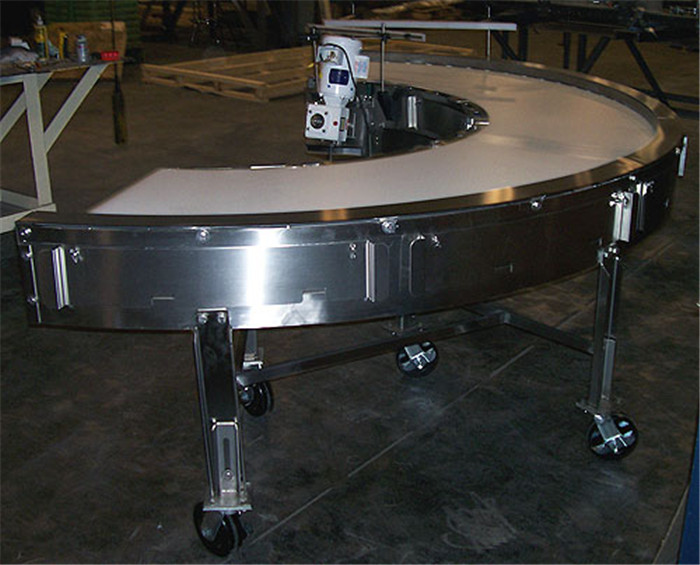

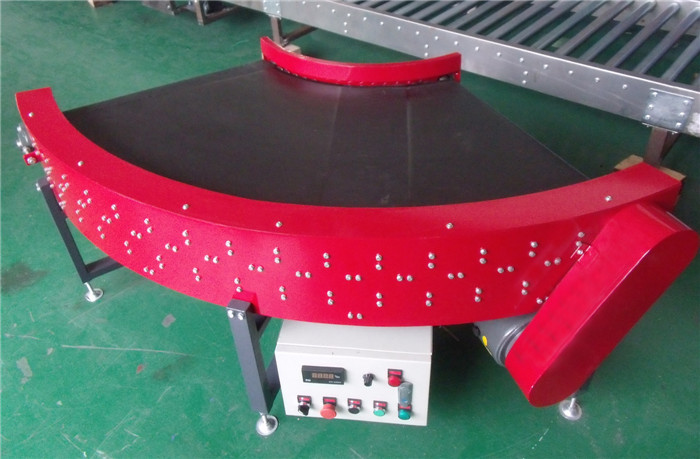

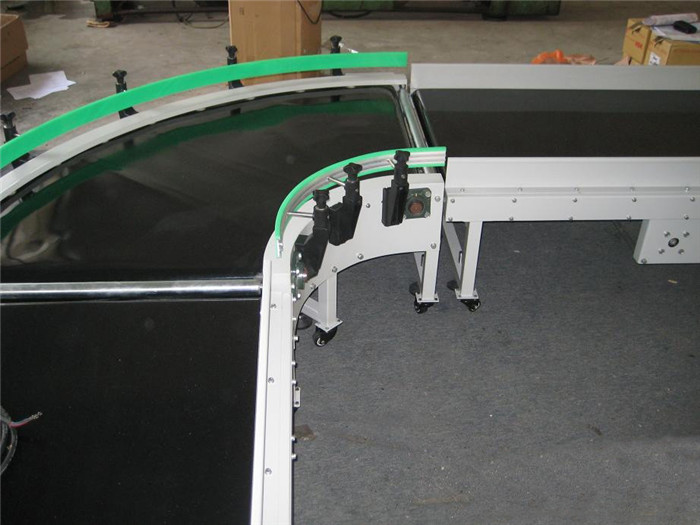

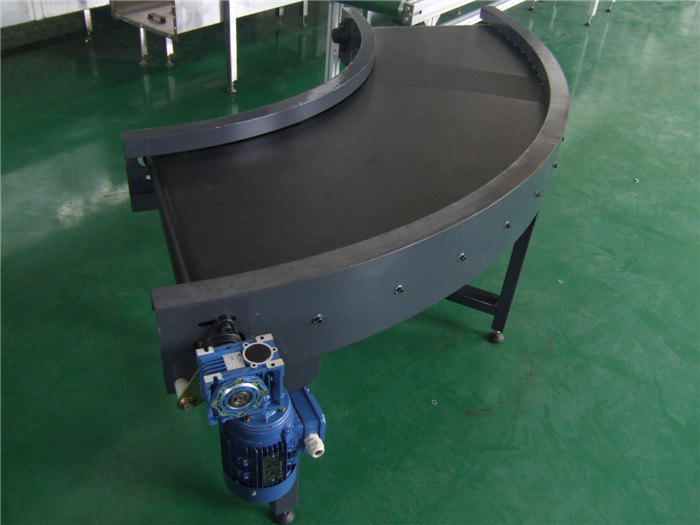

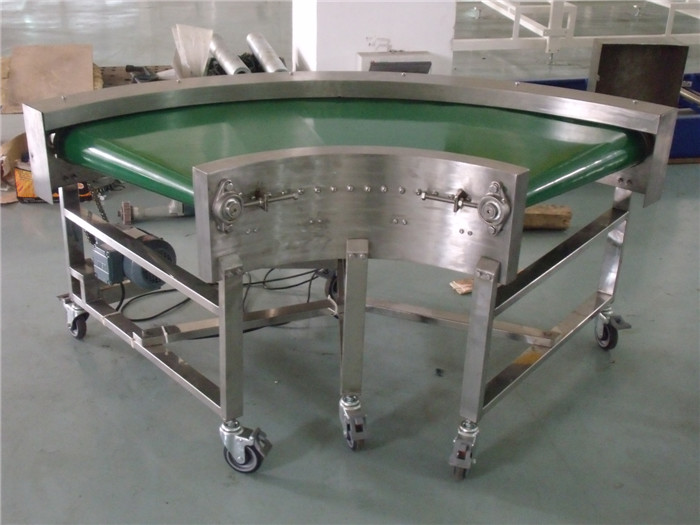

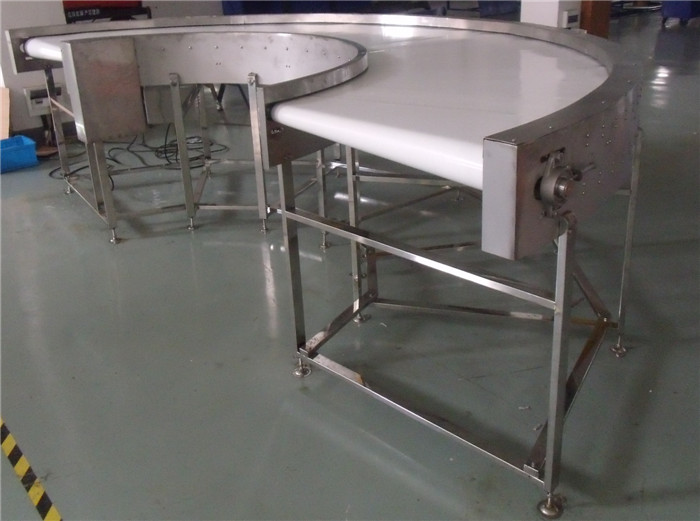

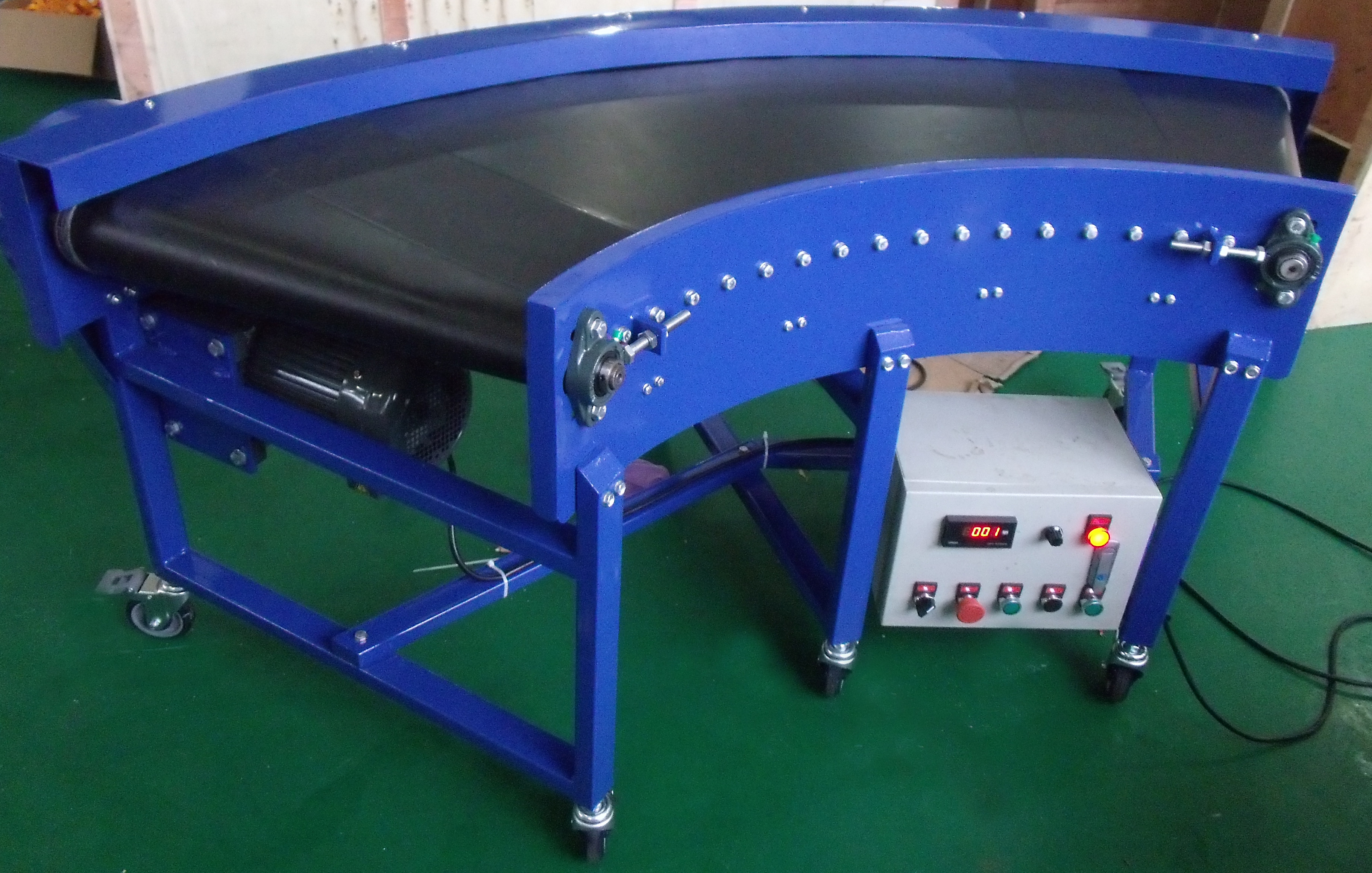

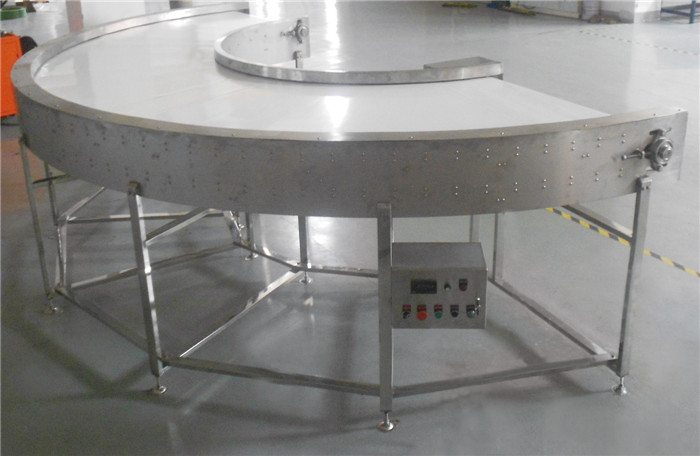

* Belt Curve Conveyor
Model  CC-B90, CC-B180

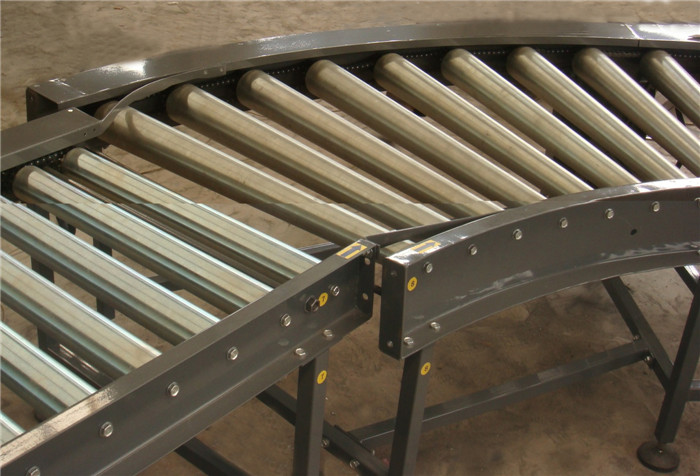

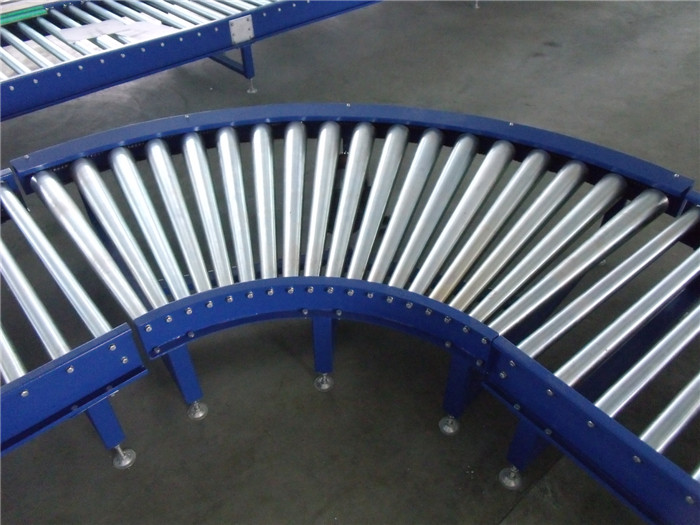

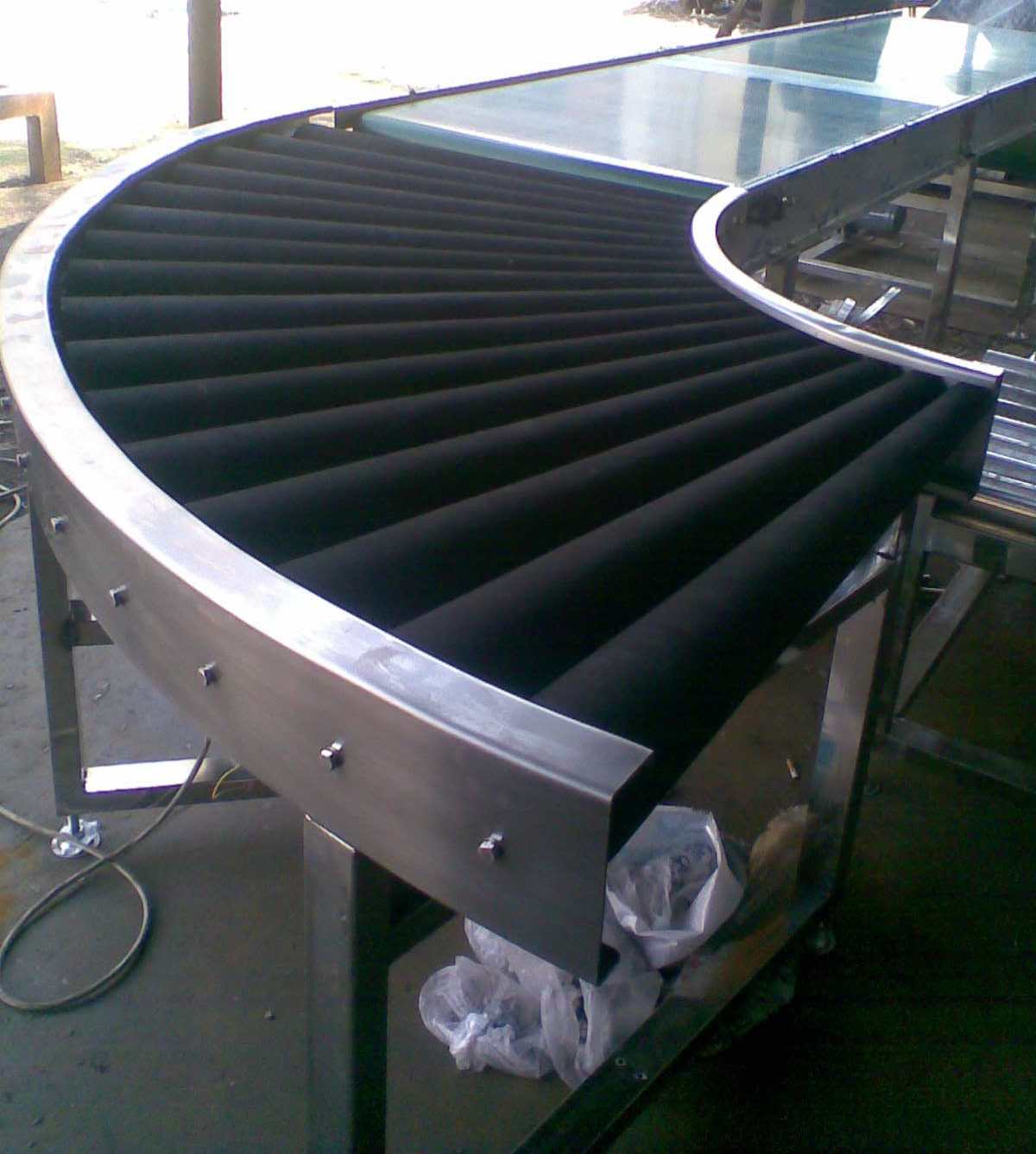

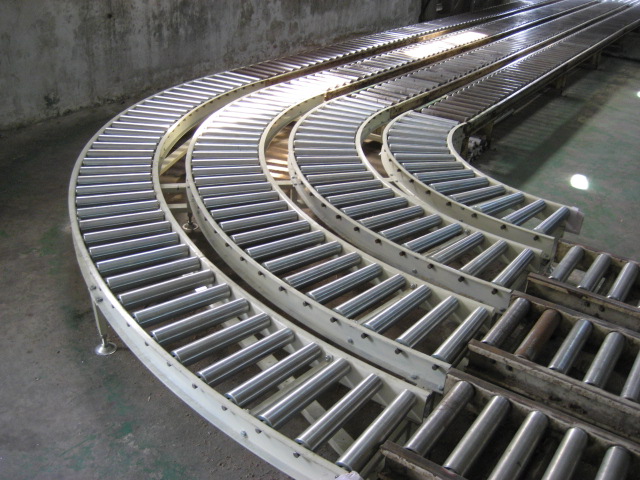

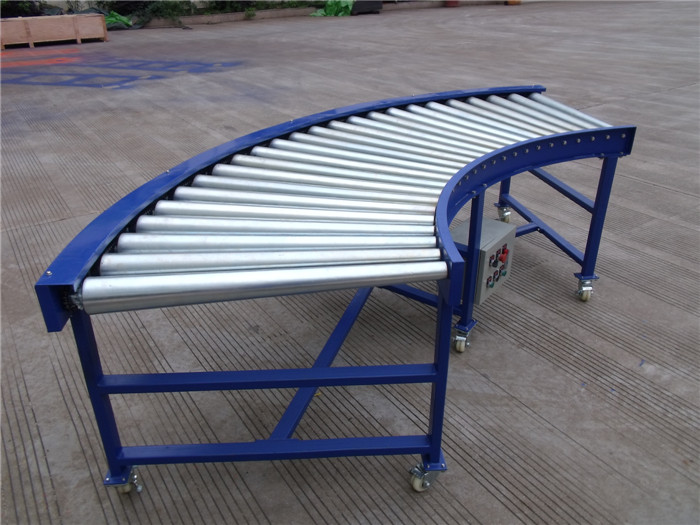

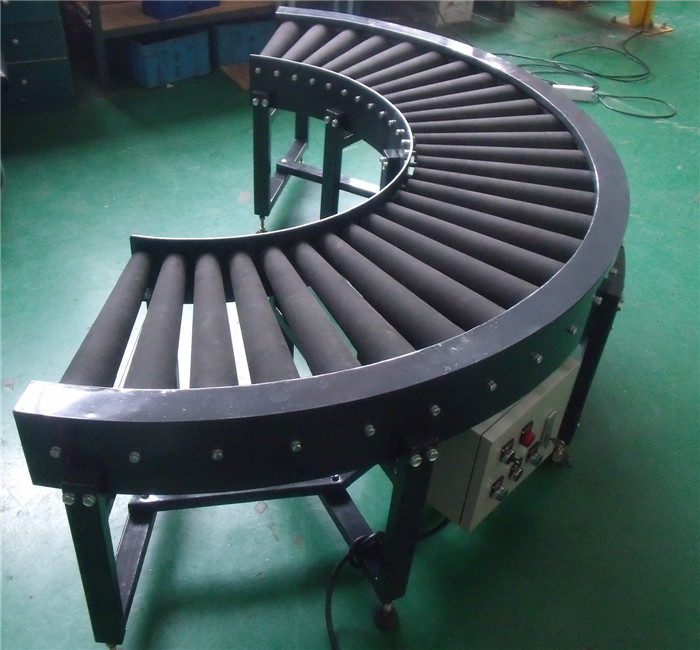

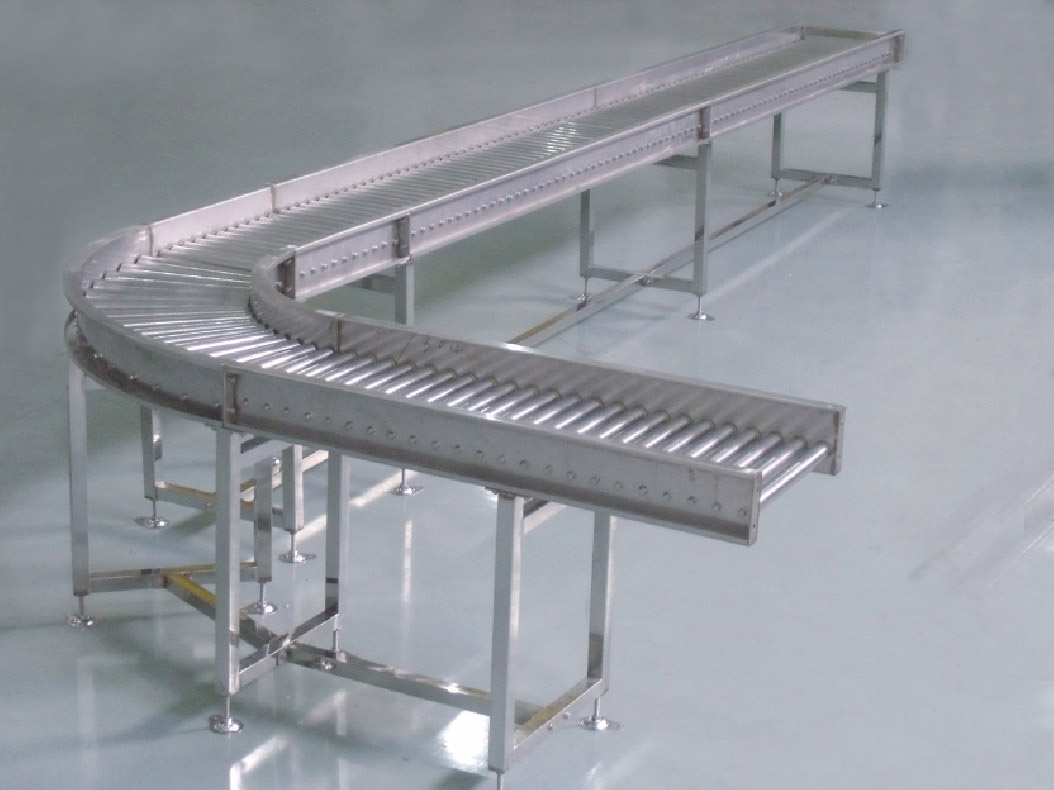

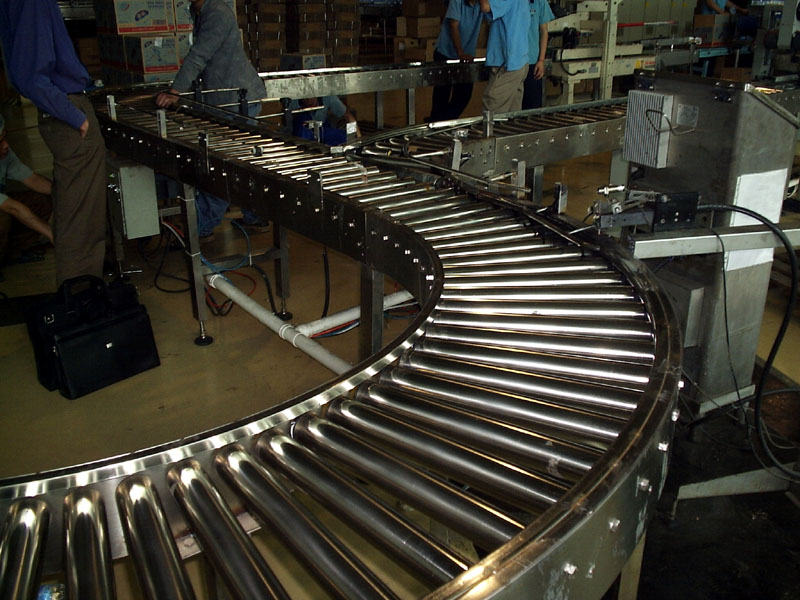

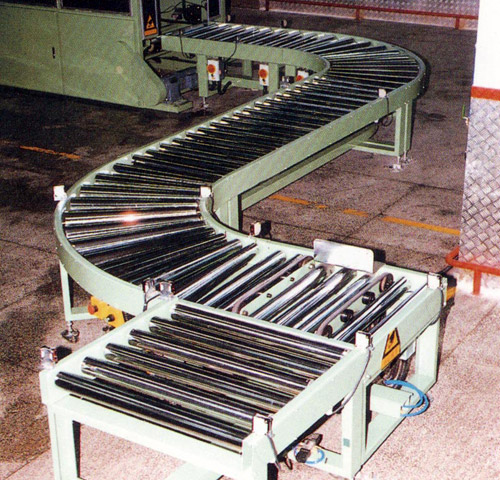

*Roller Curve Conveyor
Model CC-R90, CC-R180




More conveyors available, please ASK US if you're looking for something else.



Common Technical Parameters:
Items Options
Curve Angle Usually 90°or 180°, and 30°, 45°& 60°possible for roller curves only
Belt Type Optional both in material, color and brand; green or black PVC & white PU most common choices
Roller Type Zinc-plated, Chrome-plated, Rubber-coated, SUS201, SUS304, Plastic, etc
Frame Material Painted carbon steel, Powder coated carbon steel, Stainless steel, etc
Effective Width 0ptional, 600mm effective as a factory standard
Curve Height Optional, equal to the height of other conveyor to be connected
Turning Radius Optional, 900mm inner radius as a factory standard
Side Frame Overheight Optional, usually 50mm higher
Speed Constant or variable, 10-20m/min as a factory standard
Runing Direction Usually unidirectional for belt curves, and unidirectional or bidirectional for roller curves
Capacity Optional, usually 30-50kg/meter
P.S.: For customized conveyors, please fulfil " INFORMATION COLLECTION " file with an inquiry.
