Model: GBC

This conveyor is usually applied in conveying flat-bottomed items like cases, boxes and pallets when turning corners. Small, soft or irregular items are supposed to put on trays or other flat containers when transferred. Without any motors, it requires manual or other forces to move on items. Customizable in specifications and forms, it intends to:

* Increase the efficiency of material handling work
* Decrease the intensity of labor, and quantity of labor
* Protect items from manual impact damages
* Save overall cost for modern enterprise management

Application:

Assembly lines when turning corners, straight conveying lines with roller conveyor combination

Features:

Flexible, Cost efficient, easy to maintain, durable, large and efficient distribution

Relative Products:

Gravity Skate-Wheel Conveyor

Gravity Roller Conveyor

More conveyors available, please ASK US if you're looking for something else.

Common Technical Parameters:

Items	Options
Unit Forms	Square or rectangle
Universal Ball Types	Usually zinc-plated, ball diameters as per specific application
Frame Material	Painted carbon steel, Powder coated carbon steel, Stainless steel, etc
Unit Specs.	Optional, not limited
Ball Distance	Optional, 100mm central as a factory standard
Side Frame Overheight	Optional, usually even side frame with tranferring surface
Capacity	Optional, usually 50-100kg/meter

P.S.: For customized conveyors, please fulfil " INFORMATION COLLECTION " file with an inquiry.

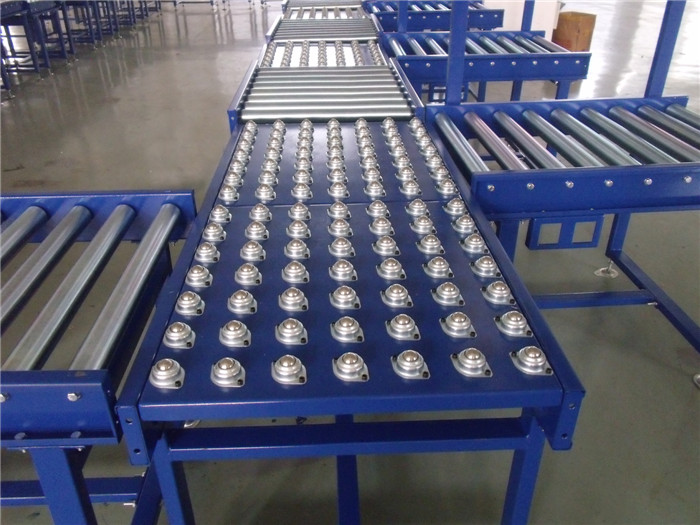

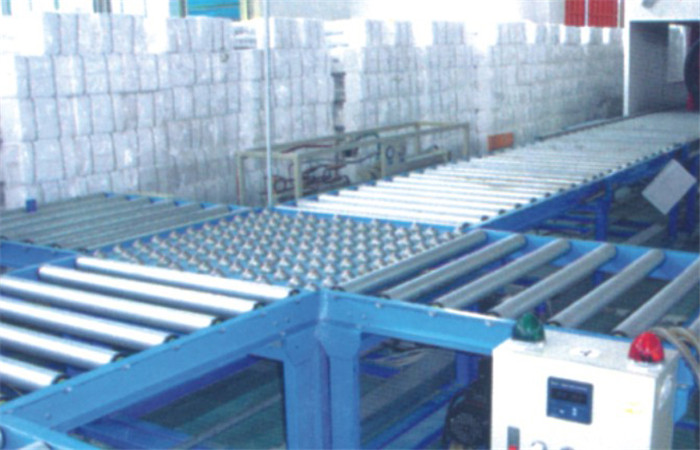

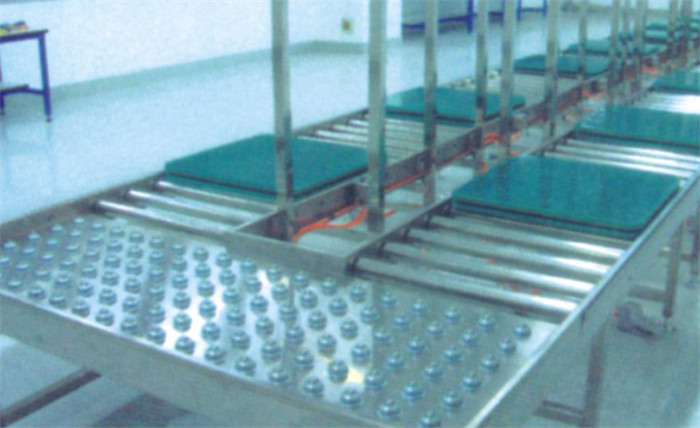

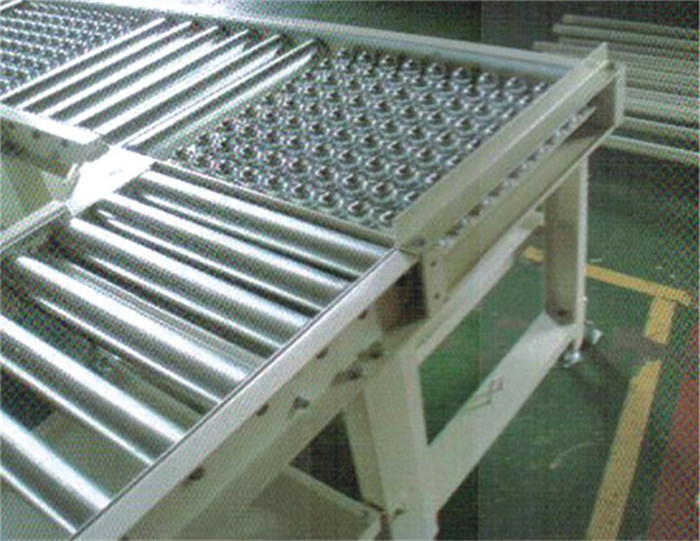

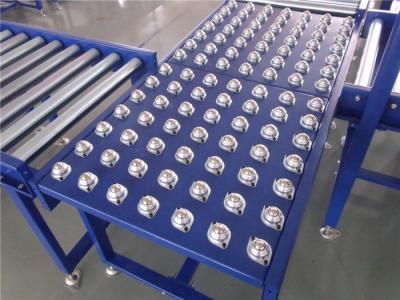

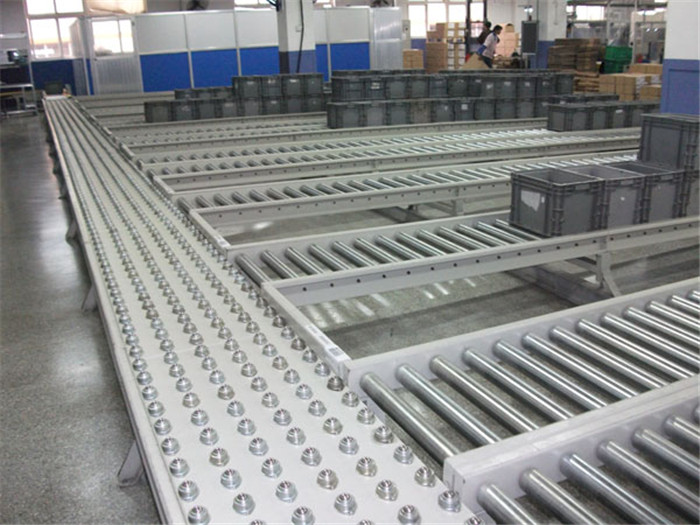

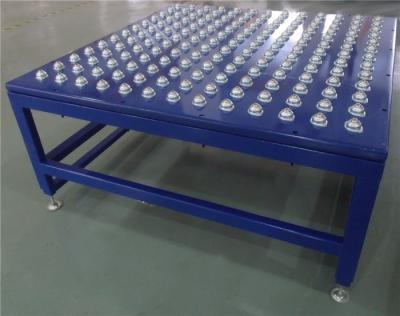

More Pictures for Reference
