Model: ML-P

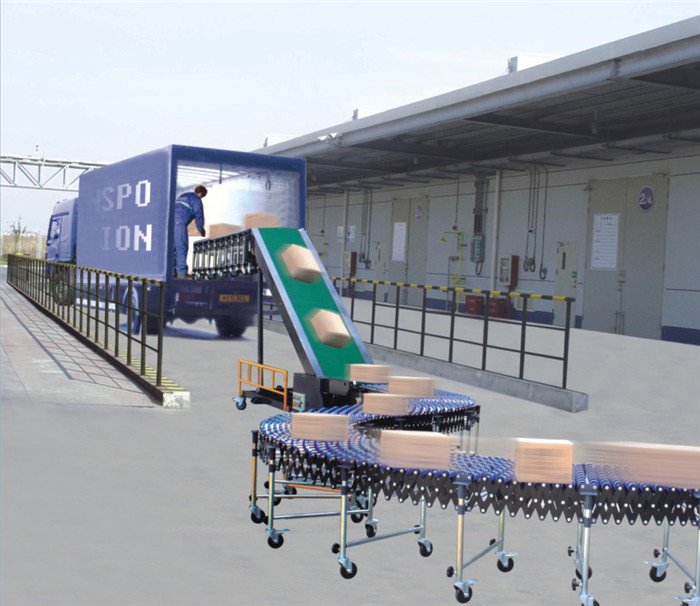

It is a welcome loading / unloading conveyor, especially for the situations without shipping docks. It is designed to load or unload item to or from containers, trailers, trucks, or vans AUTOMATICALLY. It intends to:

* Increase the efficiency of material handling work
* Decrease the intensity of labor, and quantity of labor
* Protect items from manual impact damages
* Save overall cost for modern enterprise management

Application:

Loading or unloading cartons, boxes, cases, and other flat-bottomed items; soft bags & sacks also possible

Features:

Fit to different heights, with top platform buffer, easy to operate & maintain, durable

Relative Products:

Mobile Loading Conveyor

Mobile Loading Conveyor w/o Top Extension

More conveyors available, please ASK US if you're looking for something else.

Main Technical Parameters:

Composition Items	Mobile Loading Conveyor with Top Platform

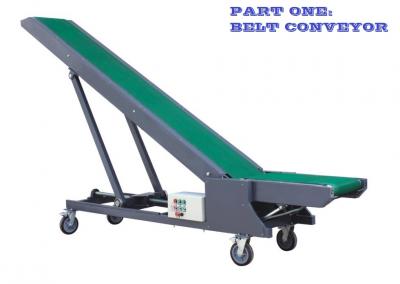

	Part One: Belt Conveyor	Part Two: Top Platform
Length (mm)	4660	fixed length, max. 3000mm
Effective Width (mm)	600	600 or optional
Height (mm)	700-2500
Capacity (kg/meter)	50
Speed (m/min)	10-20
Motor Power (kw)	1.5kw for belt, 2.2kw for lifting	optional
Power Supply	380V,3H, 50HZ (standard), others available
Dead Weight (kg)	Depends

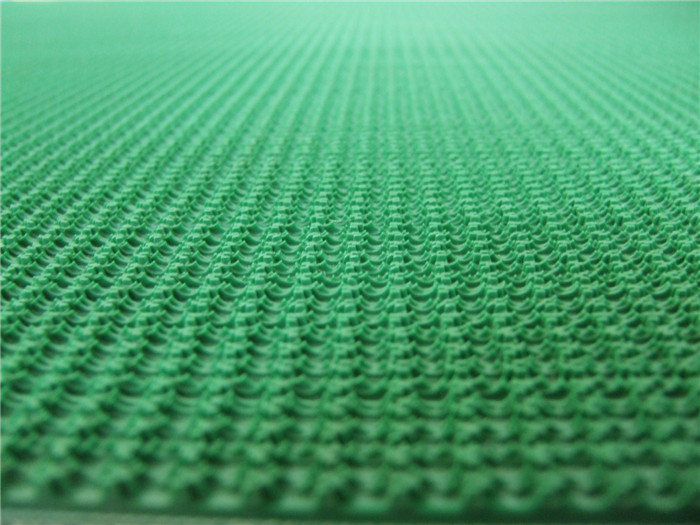

Main Material	Carbon steel, PVC belt

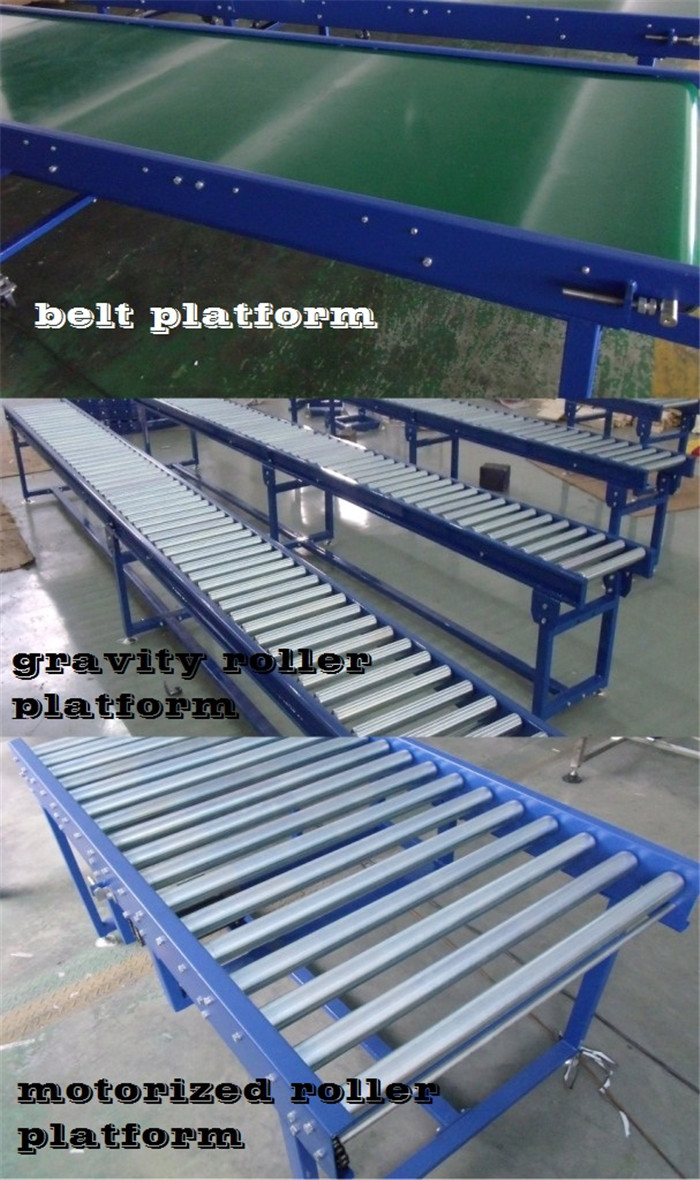

P.S.: Forms of platform is optional as per application, including belt, motorized rollers, gravity rollers, or just a steel platform only.

More Pictures for Reference
