Model: ML

It is a welcome loading / unloading conveyor, especially for the situations without shipping docks. It is designed to load or unload item to or from containers, trailers, trucks, or vans AUTOMATICALLY. It intends to:

* Increase the efficiency of material handling work
* Decrease the intensity of labor, and quantity of labor
* Protect items from manual impact damages
* Save overall cost for modern enterprise management

Application:

Loading or unloading cartons, boxes, cases, and other flat-bottomed items; soft bags & sacks also possible

Features:

Fit to different heights, easy to operate & maintain, durable

Relative Products:

Mobile Loading Conveyor

Mobile Loading Conveyor with Top Platform

More conveyors available, please ASK US if you're looking for something else.

Main Technical Parameters:

Composition/Items		Mobile Loading Conveyor w/o Top Extension
Length (mm)		4660
Effective Width (mm)		600
Height (mm)		700-2500
Capacity (kg/meter)		50
Speed (m/min)		10-20
Motor Power (kw)		1.5kw for belt, 1.5kw for lifting
Power Supply		380V,3H, 50HZ (standard), others available
Dead Weight (kg)		600kg
Main Material		Carbon steel, PVC belt

P.S.: ULC can be customized in working height max. up to 3 meters.

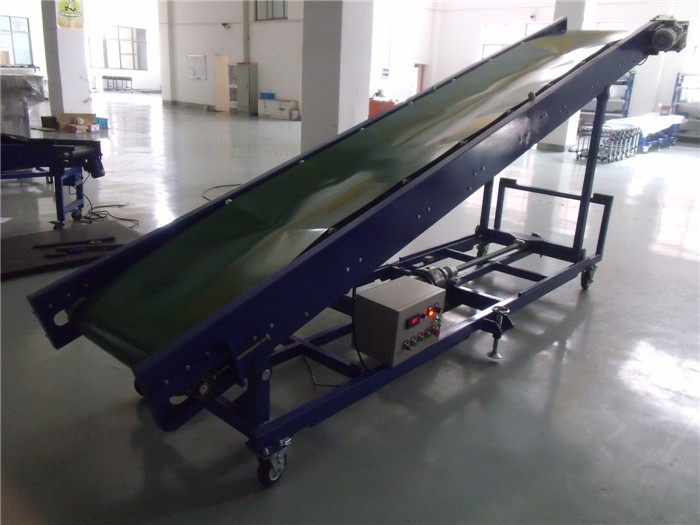

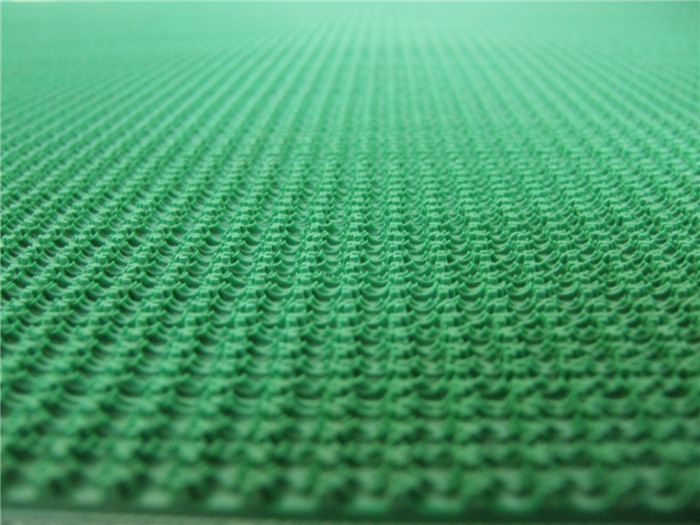

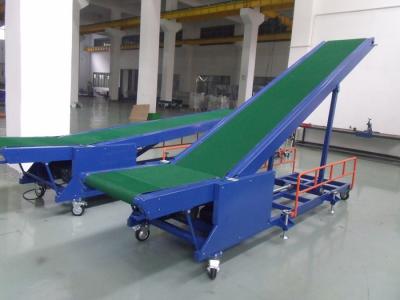

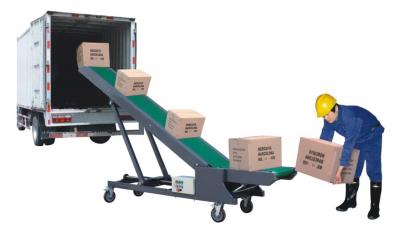

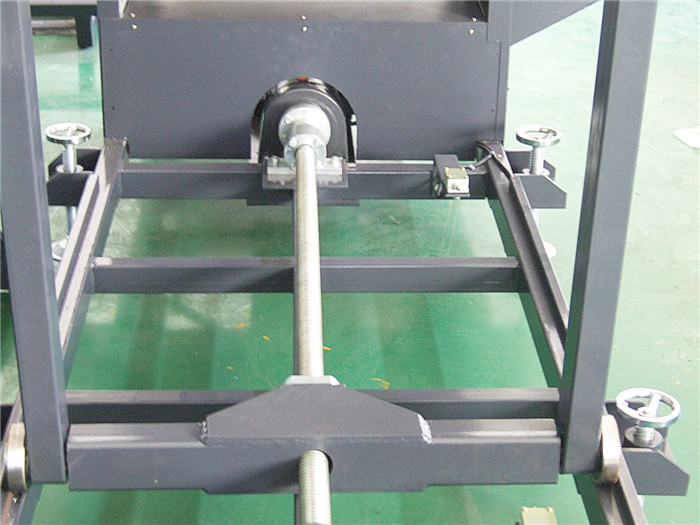

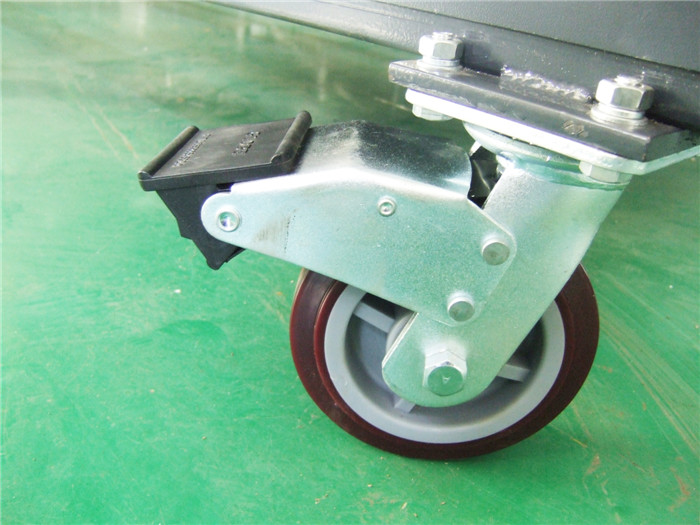

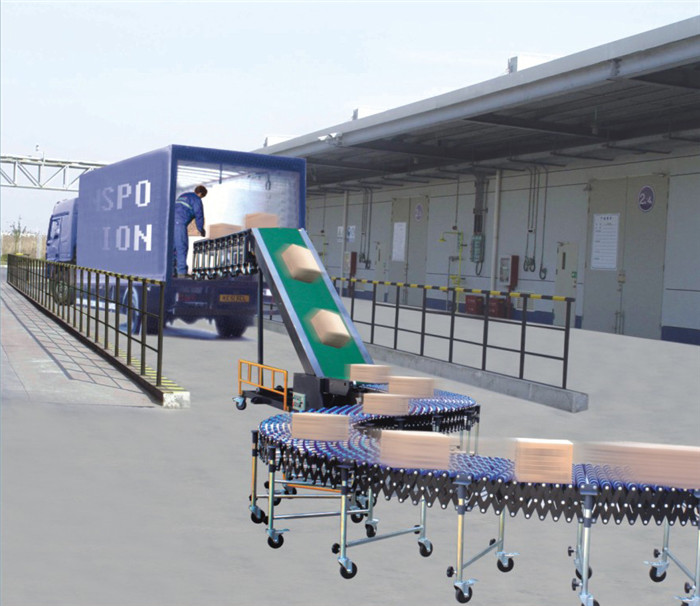

More Pictures for Reference
